Automatic 2 Colour with
Rottary Die Machine
5 Ply Automatic
Corrugation Plant
Automatic Box Stitching
Machine
QC Laboratory
Forklift
Stock paper

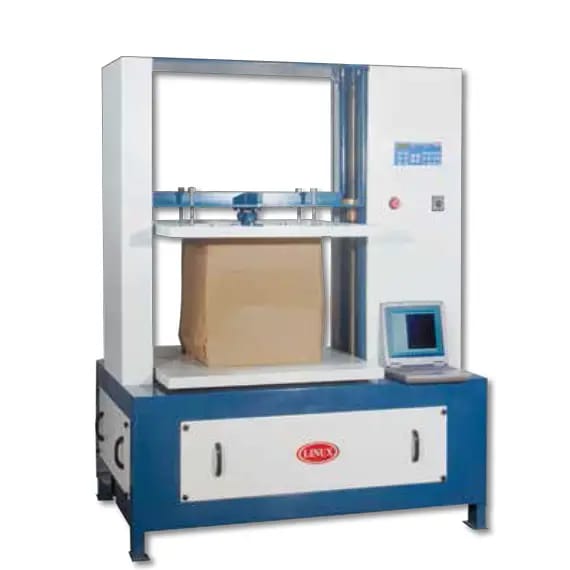

Compression Strength Tester Micro PC
Container Compression Tester is an efficient and easy to use equipment intended for measuring the ability of Corrugated or Solid fiber shipping containers to resist external compressive forces. This method describes how to determine the resistance of a fiberboard shipping container to compressive forces. This is accomplished by placing the container between two flat platens, one of which is mechanically driven to compress the box. A recording device is incorporated to indicate the force and deformation (deflection) required to compress the container.

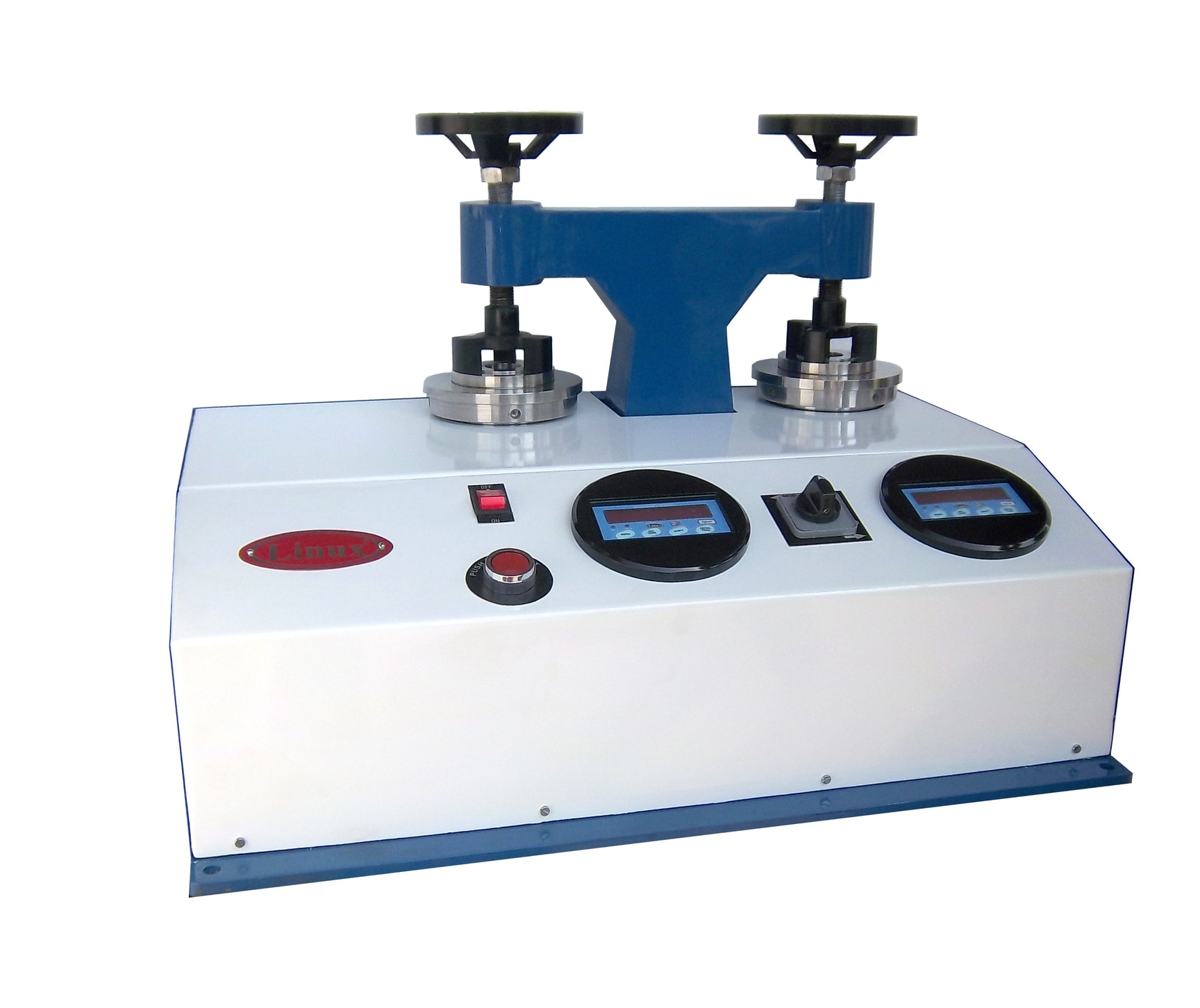

Bursting Strength Double Head Economy Digital Model
Bursting Strength is a widely used measure of resistance to rupture of various materials. A test specimen is held between two circular clamps and subjected to an increasing pressure from a rubber diaphragm. The rubber diaphragm is expanded by a controlled hydraulic pressure until the test specimen ruptures. The Bursting Strength of the specimen is the pressure reading at the time of rupture.

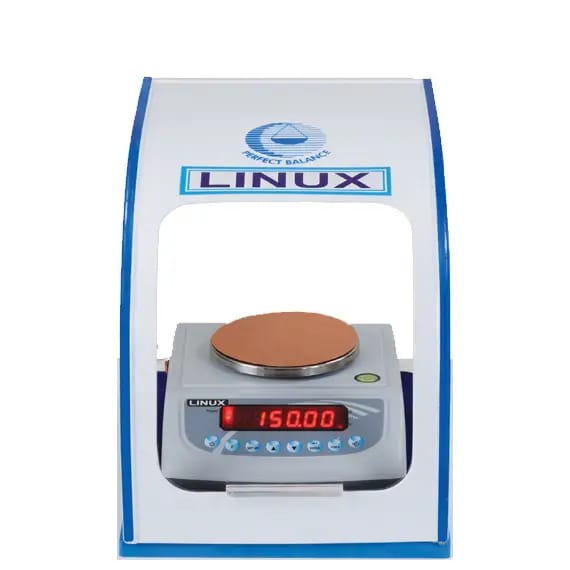

GSM Tester
In paper manufacturing and user industry, the term for expressing the “Weight” per unit area, (more properly mass per unit area) of paper has been “basis weight”, “ream weight”, “substance”, or grammage. Also in most countries, the mass per unit area is expressed in grams per square meter (gm.m). The area of several sheets of paper or paperboard is determined from linear measurement. The weight is determined by weighing. The grammage is calculated from the ratio of the mass to the area, after conversion to metric units when necessary.

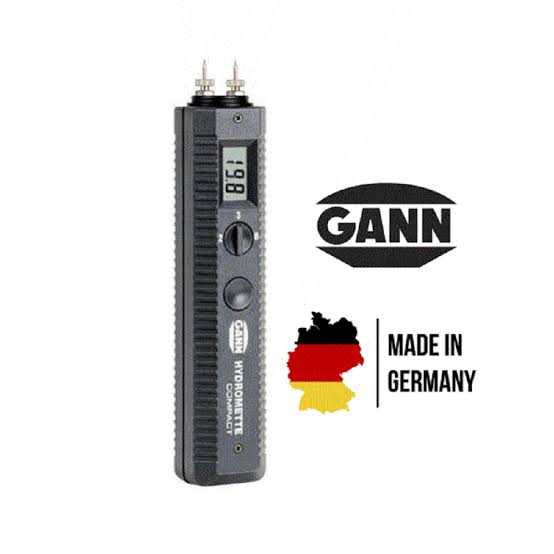

Electronic Moisture Tester
Electronic Moisture Tester is an electrical resistance type digital moisture meter. It calculates on the basis of mass of water / mass of solids. Since the clectrical conductivity of paper is considerably effected not only by its moisture content, but also by the paper temperature and various substances contained in the paper, it is necessary to take these influences into consideration in the design of the moisture meters to ensure accurate readings. The hand closes naturally around the ergonomic form of the housing so the material to be measured. The thin pins make it easy to measure the moisture content of paper, paperboard and corrugated board up to maximum thickness of 25mm.

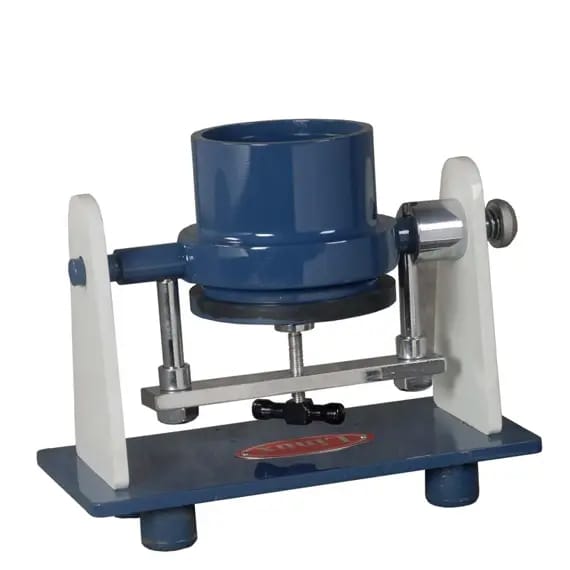

Cobb Tester
The test is used for determining liquid absorptiveness or resilience of treated and untreated paper, board, fabrics and other sheet materials. The test consists of a test apparatus, its 10 kg roller and blotting paper. The roller method is recommended to insure better consistency and reliability that can be obtained by manual blotting or rubbing the specimen.
